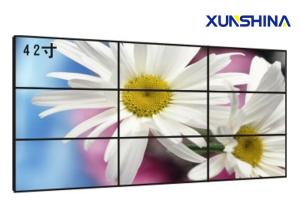

3X3 46 inch Ultra Thin 3.5mm Advertising LCD Video Wall Display With 4K Input
Description of LCD Video Wall
1) DID LCD splicing unit as both a separate monitor use, you can also N*N spliced into the use of large screen
2) Ultra narrow frame design 3.5mm, support 4K signals
3) Continuous working for 7 x 24 hours
4) Remote control function: by RS232 port and Ethernet connection for remote operation
5) Integrate multi-channel video signal types: HDMI, DVI, VGA, DP
6) The screen bodies use unified international multinational group three major brands such as Samsung, LG and Sharp and so on
Specifications
| Model No. | XS460-4600HD-SNK3 |
| LCD | Size | 46" Samsung panel |
| Resolution | 1920(H)x1080(V) support 4K signals |
| Pixel pitch | 0.53025(H)x0.53025(V) |
| Backlight | LED |
| Brightness(typical) | 500cd/m² |
| Contrast | 3000 : 1 |
| Viewing angel (H/V) | 178° / 178° |
| Color depth | 16.7M |
| Response time | <8ms |
| Display area | 1018.08(H)×572.67(V) |
| Bezel | 3.5mm |
| interface | CVBS In / Out (BNC ) | 0/0 |
| VGA In / Out | 1/0 |
| DVI In / Out | 1/0 |
| HDMI In/Out | 1/0 |
| DP In/Out | 1/1 |
| control | IR remote control | NO |
| RS-232 In/Out | 1/2 |
| Physical parameter | Dimension | 1021.98mm(W) x576.57mm(H) x121.7mm(D) |
| Frame color | Black |
| Frame material | Metal |
| Net weight | 18.6Kg |
| Power | Power consumption | ≦190W |
| Standby | <1W |
| Power supply | AC 100V-240V, 50/60Hz,Universal,±10% |
| Environment | Operating humidity | 20-90% RH(no condensation) |
| Storage humidity | 10-90% RH (no condensation) |
| Operating temperature | 0 ~ 50° C / 32 ~ 122° F |
| Storage temperature | -20 ~ 60° C / -4 ~ 140° F |
| Accessory | Standard accessories | Power cable(1.8m, User manual, Warranty card, Quality certificate |
| Optional accessories | Wall mounted brackets, floor stand brackets, cabinet |
| *design and specifications are subject to changes without prior notice |
Applications
1.Education and Conference System
2.Safety Monitoring System of Mining and Energy Industry
3.Commercial Industry
Used in the display terminal of commercial industry, such as advertising, media, product presentations
4.Financial Industry
Used in the information display terminal of financial industry, such as stock and security market. .
5.Transportation Industry
Used in the information display terminal of transportation industry, such as airports, ports, metro, highway.
6.Management and Control System
Used in the display terminal of management and control system such as fire-fighting, meteorology, maritime, food prevention, transportation hub
