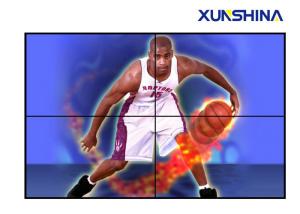

Promotional HD Digital Video Wall Displays1920X1080 Resolution
Description of lcd video wall
1. High Definition and clear image: High brightness and contrast make colors brilliant and bright, as well as stable and clear image.
2. Continuous boot for 7 * 24 hours, deserve to trust.
3. Easy to operate, flexibly operate the system with the large screen control software;
4. Can be controlled via the big screen for each terminal server software system independent implementation of content playback,schedule management ,multi-screen control ,instant messaging and so easy to operate.
5. Support error and compensation function of video wall pictures
Specifications
| Model No. | XS460-5500HD-SNL3 |
| LCD | Size | 55" Samsung panel |
| Resolution | 1920(H)x1080(V) |
| Pixel pitch | 0.630(H)x0.630(V) |
| Backlight | LED |
| Brightness(typical) | 500cd/m² |
| Contrast | 4000 : 1 |
| Viewing angel (H/V) | 178° / 178° |
| Color depth | 1.07B |
| Response time | <8ms |
| Display area | 1209.6(H)×680.4(V) |
| Bezel | 3.5mm |
| Interface | CVBS In / Out (BNC ) | 1/1 |
| VGA In / Out | 1/0 |
| DVI In / Out | 1/0 |
| HDMI In/Out | 1/0 |
| DEBUG(USB) | 1/0 |
| Control | IR remote control | Yes |
| RS-232 In/Out | 1/2 |
| Physical parameter | Dimension | 1213.5mm(W) x684.3mm(H) x118mm(D) |
| Frame color | Black |
| Frame material | Metal |
| Net weight | 30Kg |
| Power | Power consumption | ≦250W |
| Standby | <1W |
| Power supply | AC 100V-240V, 50/60Hz,Universal,±10% |
| Environment | Operating humidity | 20-90% RH(no condensation) |
| Storage humidity | 10-90% RH (no condensation) |
| Operating temperature | 0 ~ 50° C / 32 ~ 122° F |
| Storage temperature | -20 ~ 60° C / -4 ~ 140° F |
| Accessory | Standard accessories | Power cable(1.8m, User manual, Warranty card, Quality certificate |
| Optional accessories | Wall mounted brackets, floor stand brackets, cabinet |
| *design and specifications are subject to changes without prior notice |
Our Services
Pre-sales service :
Our team design and make solutions based on different requirements from different customers.
After-sales service:
1. We provide customer service through Skype, phone or email, supply you video or drawing to solve problems.
2. We provide remote control service through internet to achieve real time service.
Installation Service:
1. We provide detailed CAD drawing to customers for preparing metal structure.
2. Onsite service can be provided for guide installation and training.
Applications
1. Education and Conference System
2. Safety Monitoring System of Mining and Energy Industry
3. Commercial Industry
Used in the display terminal of commercial industry, such as advertising, media, product presentations
4. Financial Industry
Used in the information display terminal of financial industry, such as stock and security market. .
5. Transportation Industry
Used in the information display terminal of transportation industry, such as airports, ports, metro, highway.
6. Management and Control System
Used in the display terminal of management and control system such as fire-fighting, meteorology, maritime, food prevention, transportation hub
